HV-8R22 Sugarbeet Harvester.

Dig Sugarbeets Faster

The HV – 8R22 sugarbeet harvester brings many new features and benefits that will help producers increase their production up to 35% more than any of the competitors’ 8-row harvesters on the market today. This new Alloway harvester puts more beets in the truck, leaving very few beets in the rows. Field-proven, the HV-8R22 walks away from competitor machines, consistently harvesting in mixed field conditions at 5.5 MPH and in ideal conditions up to 7.0 MPH. What that means for producers is significantly faster harvesting, more acres per hour, minimal tare, and more of their valuable crop in the truck. The unique 64” curved scrub elevator provides optimal flow, reducing “chipping” while only requiring a maximum PTO 275 HP. This elevator is the widest on the 8-row market and is an integral part of why the HV-8R22 outperforms nearly every 12-row machine.

Features and Benefits

HV-8R22 Sugarbeet Harvester will provide increased production by as much as 35% more than other 8-row harvesters and most 12-row machines.

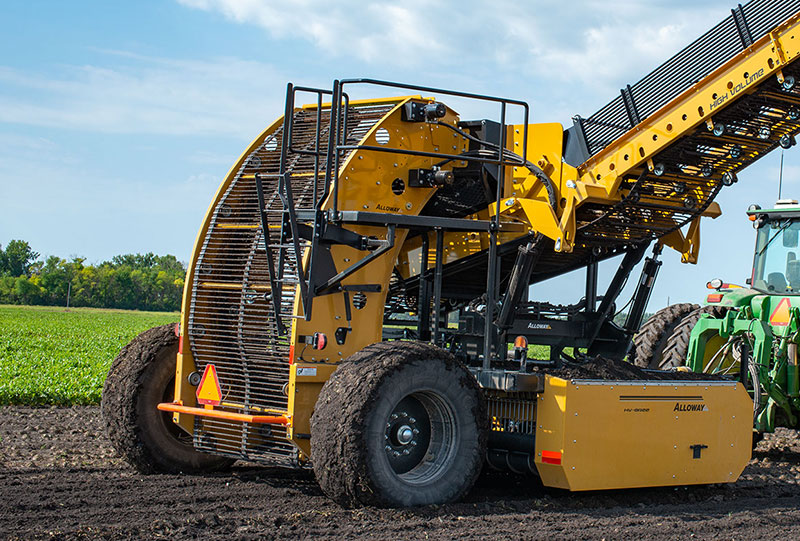

Revolutionary Elevator the unique 64” high-volume curved scrub elevator – the widest on the 8-row market – moves significantly more beets, reducing chipping, enabling 5.5 to 7.0 MPH, depending on field conditions.
LESS Tractor Horsepower Required because of the unique design and the smooth operation, the HV-8R22 harvester operates without the requirement of today’s high horsepower tractors. The maximum PTO is only 275 HP. Because of this, you will save money on the investment and operations of a bigger tractor.
Productivity Comparison
- 12-Row Machine Running @ 3.5 MPH = 9.33 acres/hour
- 8-Row Machine Running @ 3.5 MPH = 6.22 acres/hour
- HV-8R22 Machine Running @ 5.5 MPH = 9.77 acres/hour

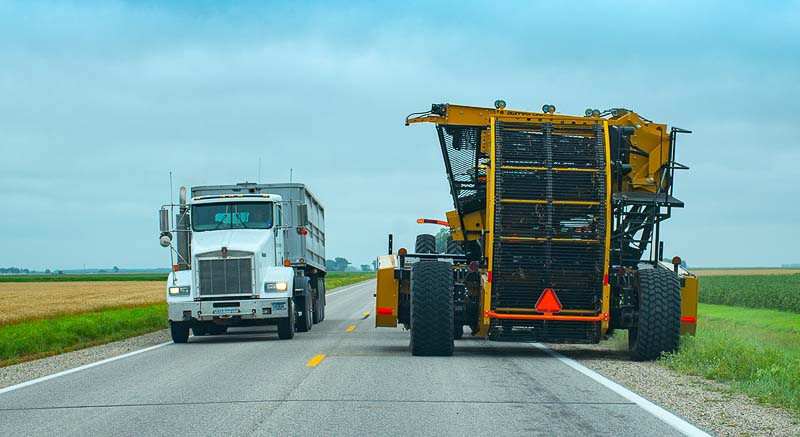

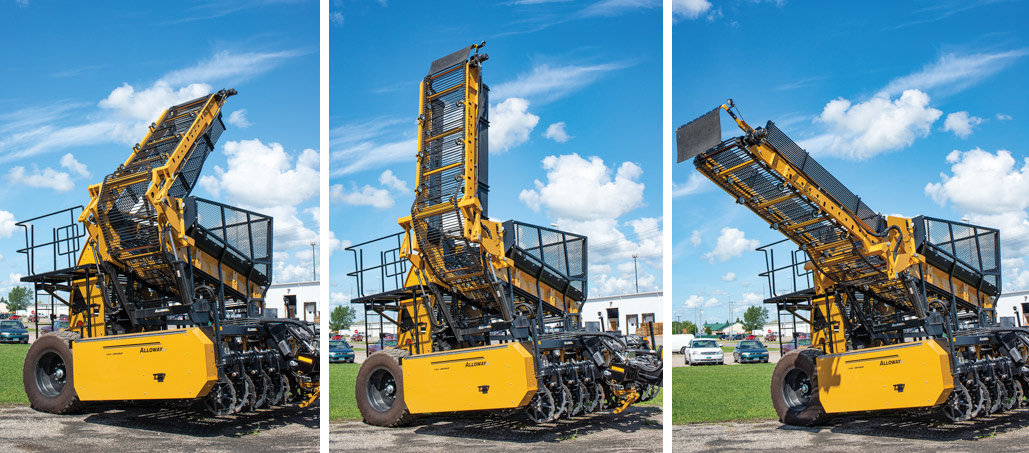

Internal Folding Boom provides easy vertical adjustment for clearance for high trucks and carts. When folded, it is only 17’ wide which means easy transport on any road.
NEW Adjustable Split Paddle Shaft helps minimize swear and prolongs paddle life
Ladder and Access Platform makes accessing drives easy when maintenance is required in the shop or in the field
Force America® Electrical Hydraulic System
- Provides internal shaft monitors
- Enables elevator and boom speeds to be adjusted on the go
- Provides the ability to change individually change RPM speeds on the go
- Provides warning system to help prevent system overload
- Provides the ability to run elevator and boom chains in reverse
Dig Faster @ 5.5 MPH, even up to 7.0 MPH in ideal conditions, minimizing tare and putting more sugarbeets in the truck

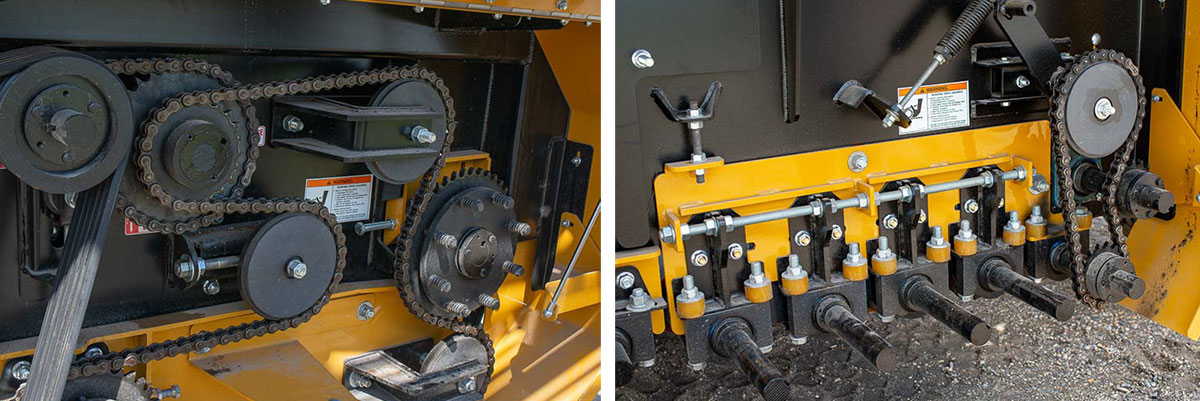

Optimal Drive Placement provides the versatility to be able to move the drive to either side of the machine

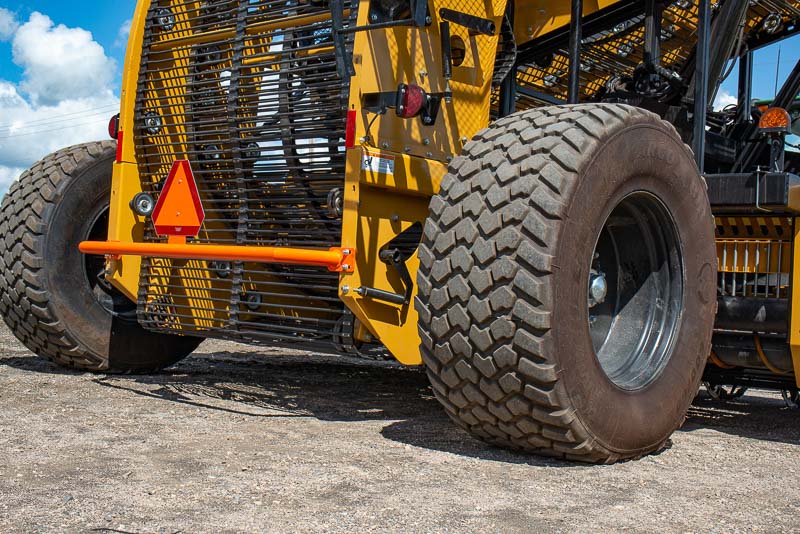

Large Floatation Tires allows harvesting to continue in all weather conditions
Tab-Friendly Lifter Wheels and NEW Mudscappers – each lifter wheel is tab friendly (tabs provided) to enable minimal sugarbeet loss/damage and with the all-new front Mount Mud scrapers dirt intake is significantly reduced
