Alloway Windrow Shredder

Heavy Duty Windrow Shredder

From the originator of the Tri-Lateral Hood design and spiral mounted flail tubes, the Alloway Shredder has always been #1 in performance and durability. Alloway is back in the business of manufacturing a top-quality shredder line with a new heavier body, larger aluminum gearbox, 10” flail tubes, large tire options. We can keep up to the extra tough crops grown today.

Features and Benefits

Heavy Duty Tri-Lateral Steel Body is ¼” thick throughout for extra strength, extended wear and quadruple shredding action. Contoured to create turbulence for triple shredding action.
Rear Struts with screw jacks (optional hydraulic) allow for easy leveling and height adjustment.
Centrally Mounted Gear Box eliminates extra belts, bearings, u-joints etc. Simplifies driveline.
Optional Large Tires for longer wear and bearing life with 8 bolt hubs.
Floating 3-Point Hitch provides smoother action, reduces hitch stress and pressure.

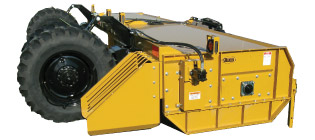

Skid Plate helps prevent the machine from bottoming out and keeps rotor and knifes out of the dirt.
Large 10″ Seamless Steel Flail Tube is dynamically balanced for smooth operation and has replaceable end shafts.
2-3/16″ Diameter Flail Tube Shafts and Bearings are double sealed for improved load capacity and bearing life.
Spiral Mounted Flails were originally designed by Alloway for reduced pulsing and smoother operation.
Heavy Duty Gear Box with extended housing for extra bearing support and larger oil capacity for cooler operation.
Safety Light Kit is standard on all units and customized to each machine for added safety.
Structural Steel Tube Cross Bracing for added support and stiffness of the frame.
Center Hanger Bearing to allow faster auger speeds for high yielding crops. Center Bearings prevent shaft whip for smooth operation.
Tapered Auger Trough to allow easy flow for high yielding crops.
Bigger Hydraulic Auger Motor with more torque to easily handle high yielding crops.

Optional Equipment

Hydraulic Rear Struts enable height adjustments to be made from the tractor operator’s seat. Rephasing cylinders are used.
End Transport Kit with a clevis or 2 pt. mounts for easy transport to and from the field.
Caster Wheel Struts make end turns and difficult field conditions easy. Available with ratchet jack or hydraulic – 3 pt. models only.
Center Dividers pushes material over from the center.
Pull Type Hitch

Specifications

Sizes Available

13 foot
15 foot
18 foot
20 foot
22 foot
24 foot
