Higher clearance tool bar
gang configurations for corn, cotton, vegetables and sugarbeets
22-40 inRow spacing, both configs
3-PointCategory 2 or 3 hitch
180°Folding tool bar range
6-36Rows per pass
Overview
Mechanical cultivation is an old fashioned idea, but it's a good one: protection from insects by displacing them, from weeds by uprooting them, even from moisture loss and erosion, at a lower cost per acre than chemical counterparts. The 3130 is Alloway's versatile high clearance cultivator, with a close-coupled gang design that puts the working tools forward under the tool bar for maximum control, and a single sweep design that reduces plugging in high-residue conditions. Built for corn, cotton, vegetables and sugarbeets.
Why growers pick it
- Higher clearance tool bar: gang configurations for corn, cotton, vegetables and sugarbeets
- Close-coupled gang design: working tools forward under the tool bar for maximum control
- Single sweep design: reduces plugging in high-residue conditions
- Double H linkage: a wide, short, very strong coupling between gang and tool bar
Sizes & specs
| Spring Tine Shanks | Rigid Shank With 3-Piece Sweep | |
|---|---|---|
| Row Spacing | 22 – 30 Inches | 30 – 40 Inches |
| Residue Cutting Coulter Diameter | – | 18 Inches |
| Dual Disc Weeder Diameter | 14 Inches | – |
| Barring Off Discs Diameter | – | 14 Inches, Adjustable Width & Angle |
| Folding Tool Bar Range | 180° | 180° |
| Linkage Down Pressure Springs (Optional) | 100 Lbs. Down Force | 100 Lbs. Down Force |
| Gauge Wheels | 6 x 16 Inch | 6 x 16 Inch |
Spring Tine Shanks
Rigid Shank With 3-Piece Sweep
Row Spacing
22 – 30 Inches
30 – 40 Inches
Residue Cutting Coulter Diameter
–
18 Inches
Dual Disc Weeder Diameter
14 Inches
–
Barring Off Discs Diameter
–
14 Inches, Adjustable Width & Angle
Folding Tool Bar Range
180°
180°
Linkage Down Pressure Springs (Optional)
100 Lbs. Down Force
100 Lbs. Down Force
Gauge Wheels
6 x 16 Inch
6 x 16 Inch
| Spring Tine Shanks | Rigid Shank With 3-Piece Sweep | |
|---|---|---|
| Number Of Tines | 1 | 1 |
| Shield Types | Rolling | Open Top |
| Linkage Type | Double H | Double H |
| Linkage Bushings | 3/4 Inch Diameter, Oilite | 3/4 Inch Diameter, Oilite |
| Linkage Gauge Wheel Rim | 11 Gauge | 11 Gauge |
| Combination Support/Guide Wheel | Steel Coned, Pneumatic, Semi-Pneumatic | Steel Coned, Pneumatic, Semi-Pneumatic |
| Lift Assist | Single or Double | Single or Double |
| Standard Tool Bar | 7 x 7 x 1/4 Inches | 7 x 7 x 1/4 Inches |
| Top Reinforced Tool Bar | 7 x 7 x 1/4 Inch Top Bar, 7 x 7 x 3/8 Inch Bottom Bar | 7 x 7 x 1/4 Inch Top Bar, 7 x 7 x 3/8 Inch Bottom Bar |
| Hiller Attachment | – | Optional |
| Tool Bar Support Wheel | Pneumatic, Adjustable | Pneumatic, Adjustable |
Spring Tine Shanks
Rigid Shank With 3-Piece Sweep
Number Of Tines
1
1
Shield Types
Rolling
Open Top
Linkage Type
Double H
Double H
Linkage Bushings
3/4 Inch Diameter, Oilite
3/4 Inch Diameter, Oilite
Linkage Gauge Wheel Rim
11 Gauge
11 Gauge
Combination Support/Guide Wheel
Steel Coned, Pneumatic, Semi-Pneumatic
Steel Coned, Pneumatic, Semi-Pneumatic
Lift Assist
Single or Double
Single or Double
Standard Tool Bar
7 x 7 x 1/4 Inches
7 x 7 x 1/4 Inches
Top Reinforced Tool Bar
7 x 7 x 1/4 Inch Top Bar, 7 x 7 x 3/8 Inch Bottom Bar
7 x 7 x 1/4 Inch Top Bar, 7 x 7 x 3/8 Inch Bottom Bar
Hiller Attachment
–
Optional
Tool Bar Support Wheel
Pneumatic, Adjustable
Pneumatic, Adjustable
| Spring Tine Shanks | Rigid Shank With 3-Piece Sweep | |
|---|---|---|
| Hitch | 3 Point, Category 2 or 3 | 3 Point, Category 2 or 3 |
| Gauge Wheel Rubber Carry Capacity | 800 Lbs. | 800 Lbs. |
Spring Tine Shanks
Rigid Shank With 3-Piece Sweep
Hitch
3 Point, Category 2 or 3
3 Point, Category 2 or 3
Gauge Wheel Rubber Carry Capacity
800 Lbs.
800 Lbs.
Features & options
Close-coupled gang design
working tools forward under the tool bar for maximum control
Single sweep design
reduces plugging in high-residue conditions
Double H linkage
a wide, short, very strong coupling between gang and tool bar
6 x 16 inch gauge wheels
maintain uniform working depth in varying soils
Simple screw adjustments
tine pitch and working depth
Rolling shields
move up and out of the way as crops mature (spring tine configuration)
Longer open top shields
protect young crops without damaging mature ones (rigid shank configuration)
Media

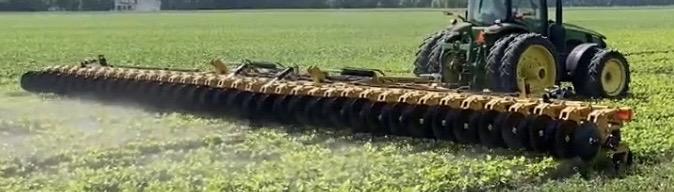

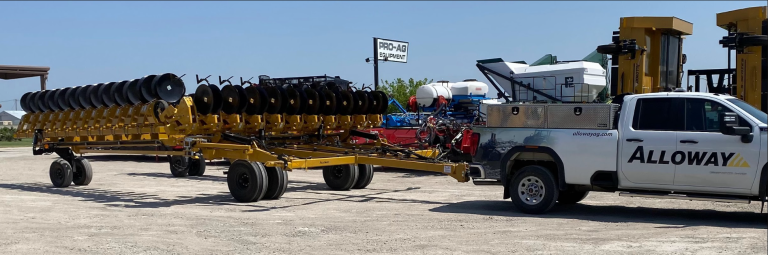

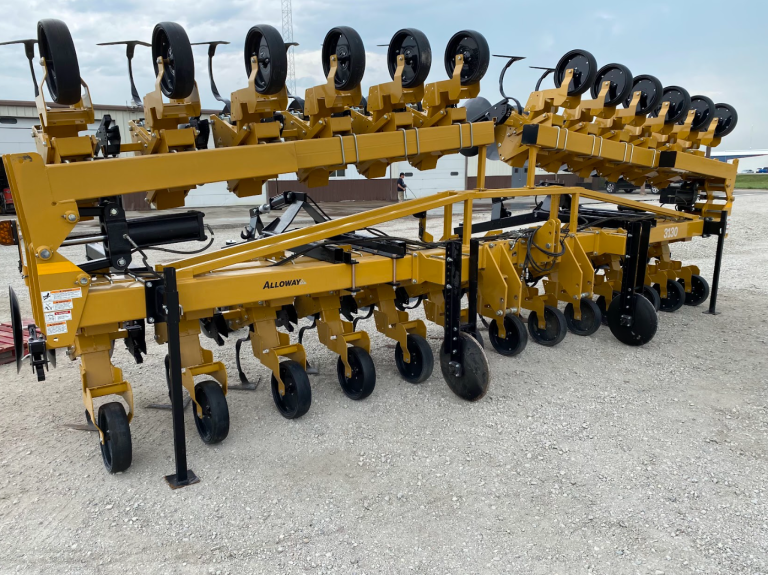

Frames from Alloway's own demo film; swapped for new photos as they arrive.
