Centrally mounted gearbox
Heavy duty gearbox with extended housing for extra bearing support and larger oil capacity for cooler operation. Eliminates extra belts, bearings and u-joints.
12-27 ftWorking widths, 7 sizes
70-170 hpTractor requirement
2,800-4,300 lbsWeight by width
1/4"Steel body, throughout
Overview

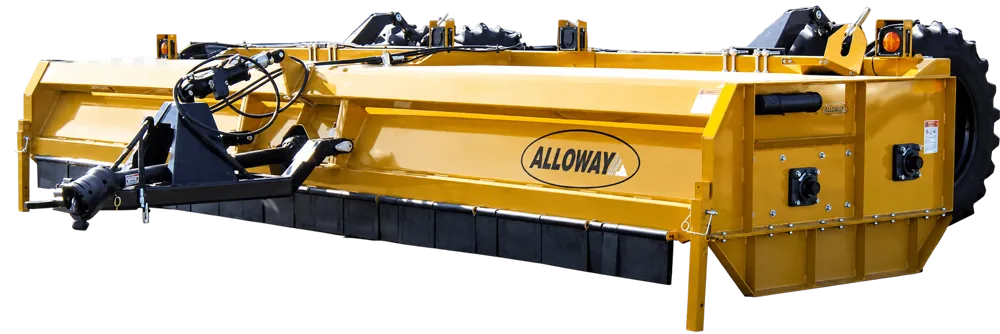

Alloway's standard center-drive shredder runs a heavy duty tri-lateral steel body, a centrally mounted gearbox that eliminates extra belts and bearings, and spiral mounted flails for smooth, pulse-free operation. Seven cutting widths from 12 to 27 feet. Built in Fargo, North Dakota and supported through the Alloway dealer network.
Why growers pick it
- Triple shredding action: heavy duty tri-lateral steel body, 1/4 inch thick throughout, for strength and extended wear
- Centrally mounted gearbox: eliminates extra belts, bearings and u-joints, with extended housing and larger oil capacity for cooler operation
- Seamless steel flail tube: large 10 inch tube, dynamically balanced, with replaceable end shafts
- Spiral mounted flails: smooth operation by reducing pulsing
Skid plates
Help prevent the machine from bottoming out and keep the rotor and knives out of the dirt.
Spiral flails on a balanced tube
Large 10 inch seamless steel flail tube, dynamically balanced for smooth operation, with replaceable end shafts. Spiral mounted flails reduce pulsing.
Rear struts with screw jacks
Allow for easy leveling and height adjustment. Optional hydraulic rear struts adjust from the tractor; rephasing cylinders standard.
Sizes & specs
| 12 ft | 15 ft | 18 ft | 20 ft | 22 ft | 25 ft | 27 ft | |
|---|---|---|---|---|---|---|---|
| Height | 52" | 52" | 52" | 52" | 52" | 52" | 52" |
| Length | 56" | 56" | 56" | 56" | 56" | 56" | 56" |
| Width (Overall) | 149" | 189" | 221" | 253" | 277" | 309" | 333" |
| Width (Cutting) | 142" | 182" | 214" | 246" | 270" | 302" | 326" |
| Weight | 2,800 lbs | 3,100 lbs | 3,400 lbs | 3,600 lbs | 3,800 lbs | 4,100 lbs | 4,300 lbs |
| Tractor HP Req. | 70 hp | 90 hp | 110 hp | 120 hp | 130 hp | 150 hp | 170 hp |
12 ft
15 ft
18 ft
20 ft
22 ft
25 ft
27 ft
Height
52"
52"
52"
52"
52"
52"
52"
Length
56"
56"
56"
56"
56"
56"
56"
Width (Overall)
149"
189"
221"
253"
277"
309"
333"
Width (Cutting)
142"
182"
214"
246"
270"
302"
326"
Weight
2,800 lbs
3,100 lbs
3,400 lbs
3,600 lbs
3,800 lbs
4,100 lbs
4,300 lbs
Tractor HP Req.
70 hp
90 hp
110 hp
120 hp
130 hp
150 hp
170 hp
Tire Size12.5 x 16" or 12.4 x 24"
Hitch3-Point, Pull Type
Hood TypeTri-Lateral, Seamless
Gearbox250 hp, 1,350 RPM
Tractor CV PTO1-3/4 or 1-3/8 Slip Clutch (1000 RPM)
Body Thickness1/4" Throughout
End Plate Thickness1/4"
Flail Tube Diameter10" x 3/8" DOM Tubing
Rotor Shaft Size2-3/16"
Flail Tube Bearing2-3/16"
Knife PatternSpiral
Knife RetentionBolt-On Cup Knife, D-Ring L-Knife (Standard / Durafaced), Rigid Cotton L-Knife (3/8" x 2-1/2")
Features & options
Triple shredding action
heavy duty tri-lateral steel body, 1/4 inch thick throughout, for strength and extended wear
Centrally mounted gearbox
eliminates extra belts, bearings and u-joints, with extended housing and larger oil capacity for cooler operation
Seamless steel flail tube
large 10 inch tube, dynamically balanced, with replaceable end shafts
Spiral mounted flails
smooth operation by reducing pulsing
Skid plates
keep the rotor and knives out of the dirt
Rear struts with screw jacks
easy leveling and height adjustment
Safety light kit
standard on all units
Structural cross bracing
steel tube cross bracing for added support and stiffness of frame
Double sealed shafts
2-3/16 inch flail tube shafts with double sealed bearings
Media
Frames from Alloway's own demo film; swapped for new photos as they arrive.
More shredders in the fieldCompare
Check any machines in this family and line them up.
| Center-Drive Shredder | Windrow Shredder | |
|---|---|---|
| Working widths | 12 to 27 ft (7 sizes) | 13 to 20 ft (4 sizes) |
| Weight | 2,800 to 4,300 lbs | 3,900 to 5,200 lbs |
| Tractor HP required | 70 to 170 hp | 100 to 160 hp |
| Discharge | Full width spread | Left, right or center windrow |
| Hitch | 3-Point, Pull Type | Pull Type |
Center-Drive Shredder
Windrow Shredder
Working widths
12 to 27 ft (7 sizes)
13 to 20 ft (4 sizes)
Weight
2,800 to 4,300 lbs
3,900 to 5,200 lbs
Tractor HP required
70 to 170 hp
100 to 160 hp
Discharge
Full width spread
Left, right or center windrow
Hitch
3-Point, Pull Type
Pull Type
