Rigid Harvester

Cleaner Beets and Fields

The Alloway Standard Harvester has a lot of the same great features it had in the past, such as its exclusive curved parabolic elevator which eliminates troublesome spring tension arms and results in less beet damage and losses. The grab rolls, paddle shafts, and new chain bed utilize dual drive technology which reduces stress on support bearings and fatigue on the entire machine. However, we have added more features such as a 40″ long shock cushioned supported chain bed to separate unwanted material; higher clearance front digger struts for exceptional view for the operator and less trash build up; eight independent cushioned adjustable grab rolls; large six ton tank option; larger rear wheels; hinged front barrier brackets that let material in, not out; high clearance folding truck boom with belted chain; extra heavy duty hitch and the machines overall design is very open, allowing accessibility for service and unsurpassed visibility.

Features and Benefits

  • Extra Heavy Duty Hitch with adjustable tongue and hydraulic level cylinders with depth stops and transport locks.
  • Steep (Adjustable) Angle Struts provide an exceptional view of digger wheels and reduce trash build up on strut mounting beam.
  • Padded Paddle Shafts are driven from both sides which distribute torque and bearing loads more evenly.
  • Hinged Front Barrier Bracket lets material in, not out for less beet loss and jammed debris.
  • 40″ Shock Cushioned Chain Bed to help filter unwanted material and mud build up. Driven from both sides and has a center support.
  • 8 Adjustable Grab Rolls move the beets twice and they are driven from both ends reducing stress on support bearings, cushioned for rock protection and grab roll bed is tilt-able.

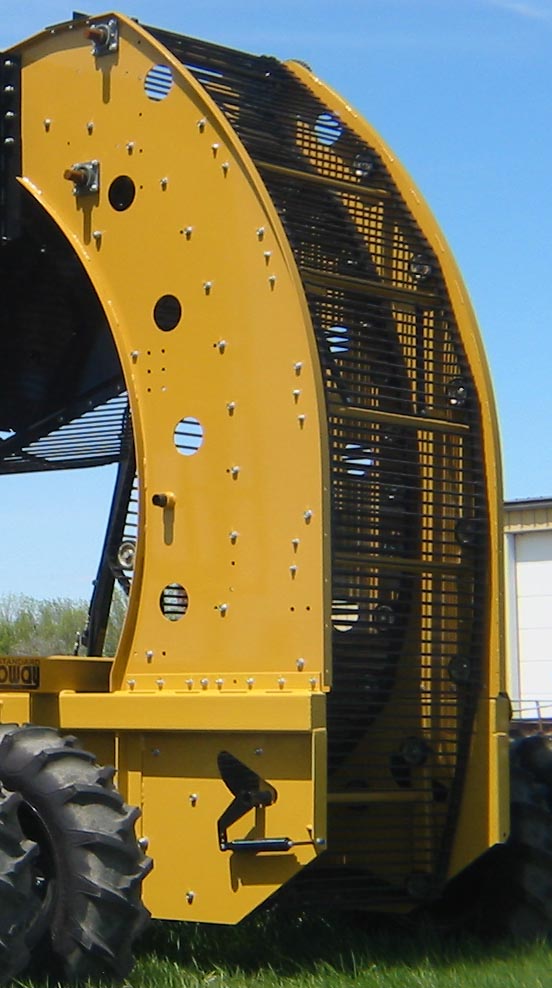

  • Curved Elevator designed for smooth clean flow taking less power and results in less beat damage reducing losses due to breakage.
  • Driven from Both Sides of machine less stress, wear, and maintenance on the entire drive system.
  • Equipped with a 3½ Ton Tank.
  • Folding Truck Boom allows for high clearance and narrow transport. Adjustable speed and reversible conveyor.
  • Open Frame Design for easy access when cleaning or servicing machine.
  • Large Wheels enable smooth and steady travel through rough fields. Plus, the wheel strut height is adjustable.

Optional Equipment

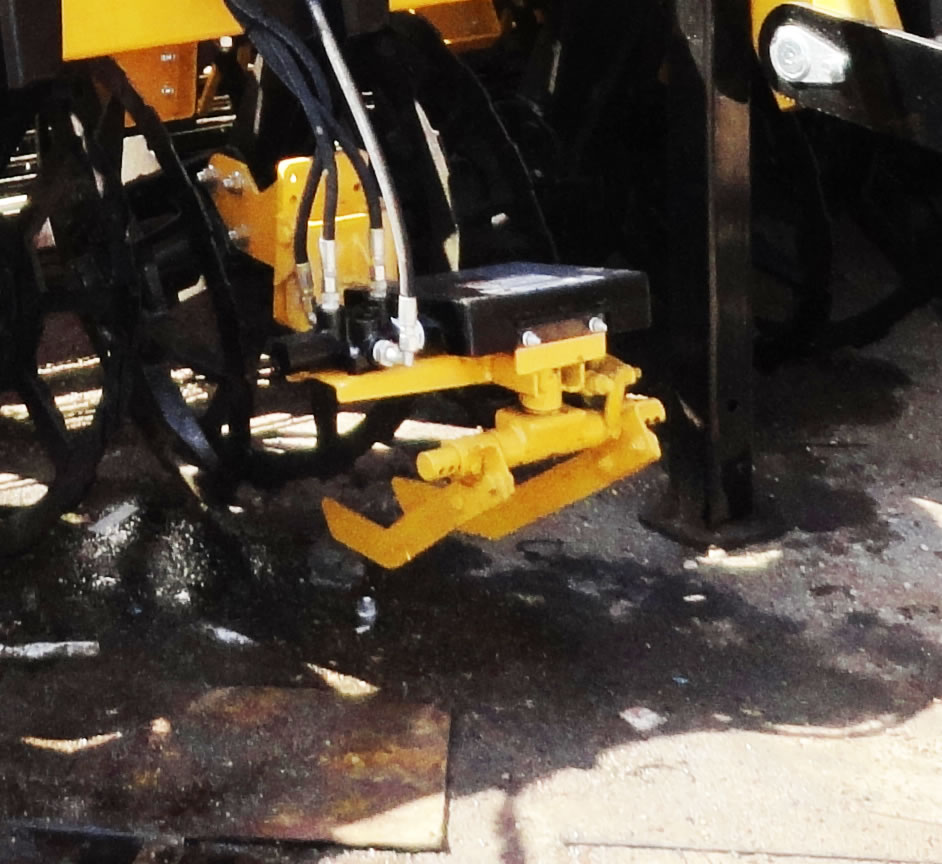

  • Integrated Row Finder with a hitch for side to side movements.
  • On-Board Self Contained Hydraulics.
  • Wheel Fillers to accommodate smaller beets.
  • Polyethylene Grab Rolls for muddy soil conditions.
  • Cushion Lifter Wheels for rock protection.
  • Rear Steer allows turning in narrow headlands and irrigated land.
  • Wheel Spacers to accommodate smaller and larger beets.
  • Cushioned Lifter Struts for rocky conditions.

Specifications

Sizes Available

6 Row 22
8 Row 22
